{tab title="ผล Speed Test "}


1. ผล Speed Test Wi-Fi 5GHz ระยะไม่เกิน 5 เมตร

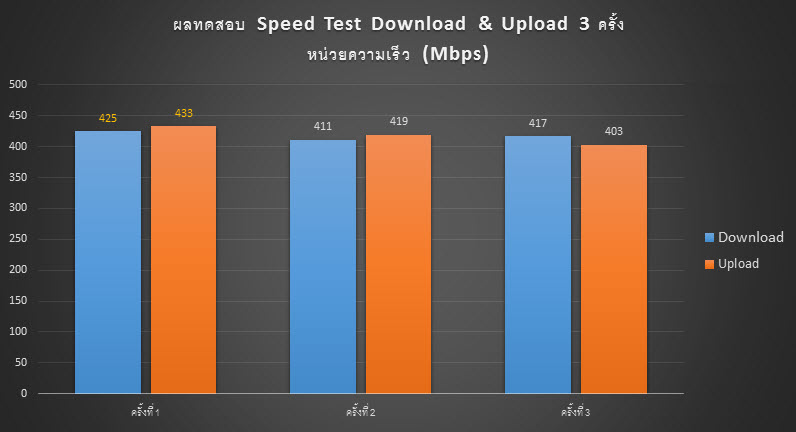

1.1. Huawei Mate 20 ได้ความเร็ว Download สูงสุด 425Mbps และ Upload 433Mbps

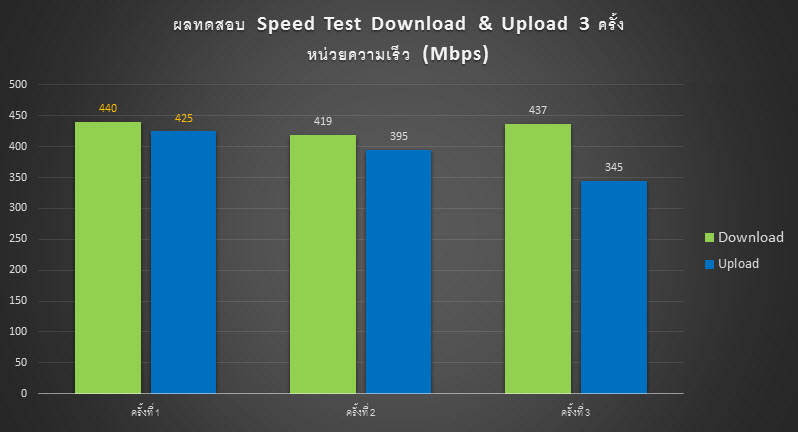

 1.2. iPhone 11 ได้ความเร็ว Download สูงสุด 440Mbps และ Upload 425Mbps

* Huawei Mate 20 และ iPhone 11 เชื่อมต่อ Wireless 5GHz ที่ความเร็ว 867Mbps

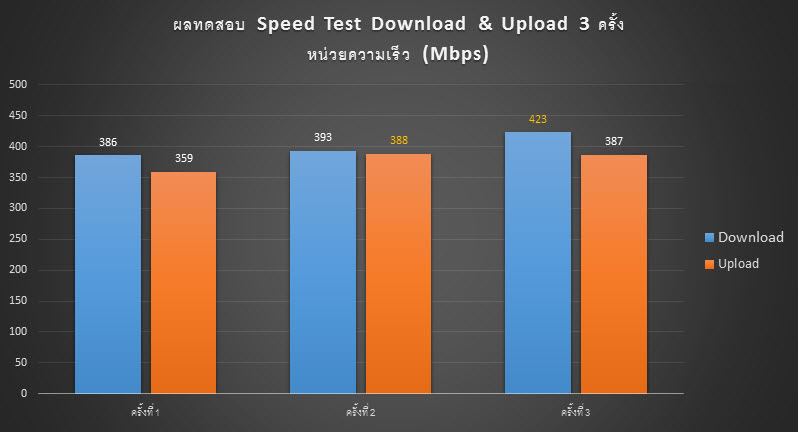

2. ผล Speed Test Wi-Fi 5GHz ระยะเกิน 5 เมตร มีกระจกกั้น

2.1. Huawei Mate 20 ได้ความเร็ว Download สูงสุด 423Mbps และ Upload 388Mbps



{tab title="Specifications"}


HARDWARE FEATURES
Processor Mediatek @580MHz (1 Core)
Ram/Rom 64MB/8MB
128MB/8MB
Interface 4 x 10/1000Mbps LAN Ports, 1 x 10/1000Mbps WAN Port, 1 x USB 2.0 Port
Button WPS/Wi-Fi Button, Power On/Off Button, Reset Button
Power Supply 12V/1A
Antenna Type 4 External Antennas
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230.0 x 144.0 x 35.0 mm)


WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz: 11a 54M: -73dBm; 11ac VHT20 MCS8: -66dBm; 11ac VHT40 MCS9: -61dBm; 11ac VHT80 MCS9: -58dBm. 2.4GHz: 11g 54M: -75dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -70dBm
Transmit Power CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
FCC: <30 dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security Provides 64/128-bit WEP encryption security.
Wireless Mode AP, Range Extender (Ver. Ram 128MB)


SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Management Access Control, Local Management, Remote Management
DHCP Server, Client, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Access Control Parental Control, Local Management Control, Host list, Access Schedule, Rule Management, TR-069
Protocols IPv4, IPv6


OTHERS
Certification CE, FCC, RoHS
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Operating Humidity: 10%~90% non-condensing
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Storage Humidity: 5%~90% non-condensing
System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux


PACKAGE CONTENTS
Package Contents AC1200 Wireless Dual Band Gigabit Router
Power Adapter
Quick Installation Guide
RJ45 Cable

{tab title="Main Features" open="true"}

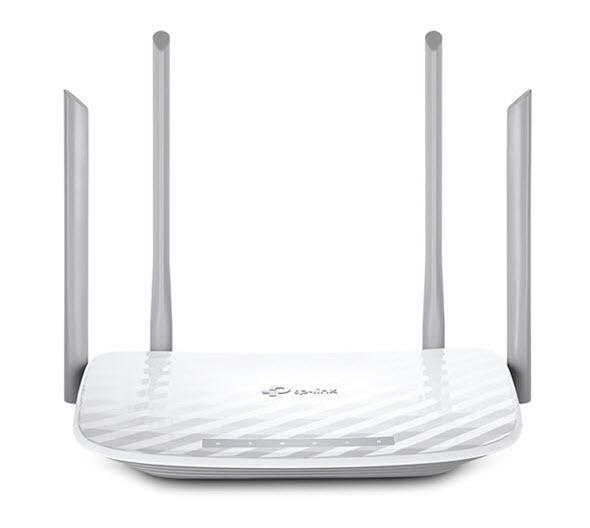

AC1200 Wireless Dual Band Gigabit Router
Archer C5-v4

  • Upgrade to fast 5th generation Wi-Fi, 300Mbps at 2.4GHz + 867Mbps at 5GHz dual band
  • Easy Remote Management, TR-069 protocol enables an operator to remotely configure and manage end-user devices
  • 4 external antennas provide stable wireless connections and optimal coverage
  • Supports USB 2.0 port, easily share files & media with networked devices
  • Full Gigabit Ports, Support 1000Mbps WAN port and four 1000Mbps LAN port, for ultrafast data transfer speeds




High-Speed Dual Band Wi-Fi for Better Connections

The Archer C5 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.
With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer C5 is
the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

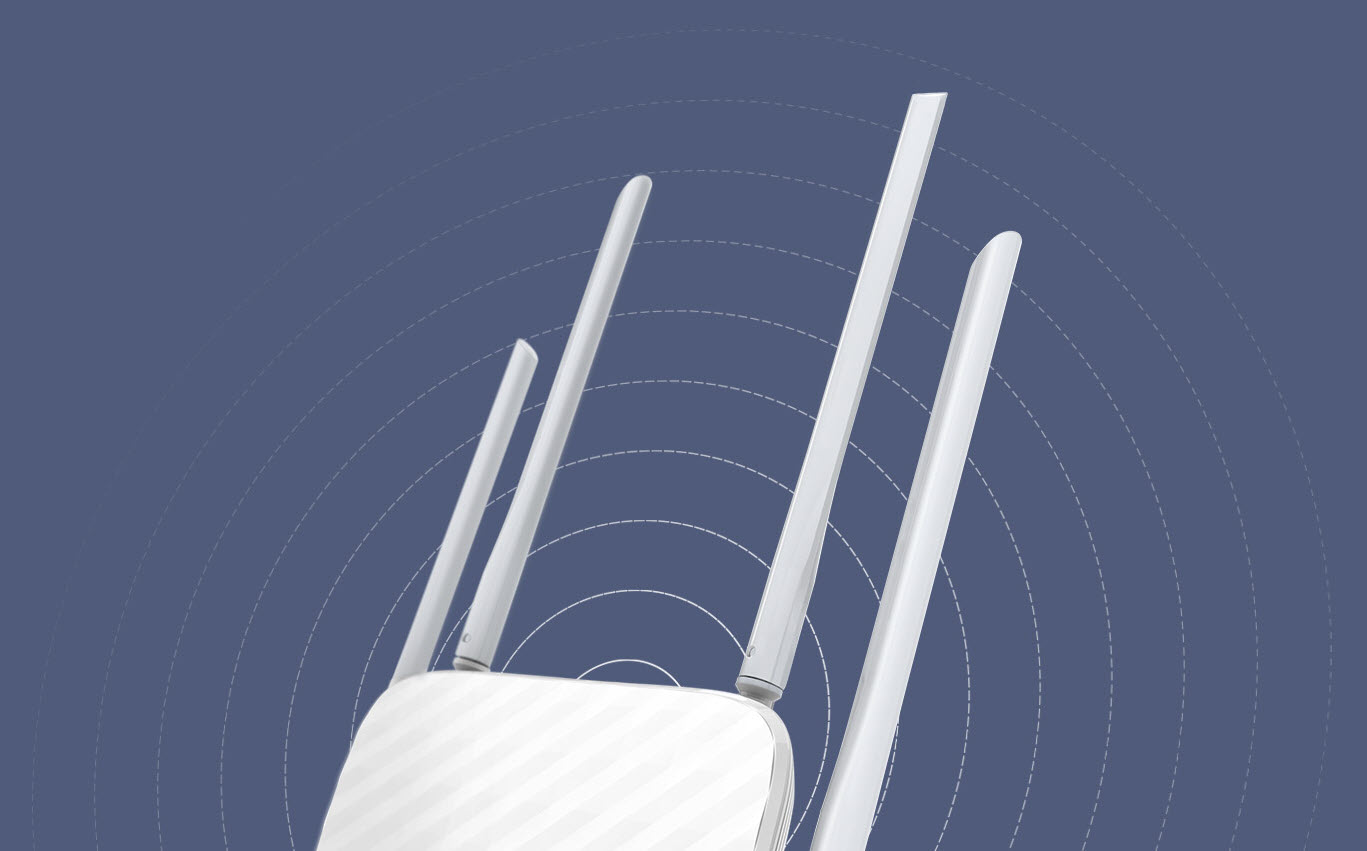

Innovative Antenna Design for Maximum Coverage

Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.


Easy Parental Control

Supervise children and staff with responsible access,
controlled by parents or administrators. Use key words
to easily set up a black list and limit the level of web access.



Supports Multi-SSID

Multiple SSID helps operators easily create separate
WLAN networks for various service deployments, such
as IPTV, Internet, etc.

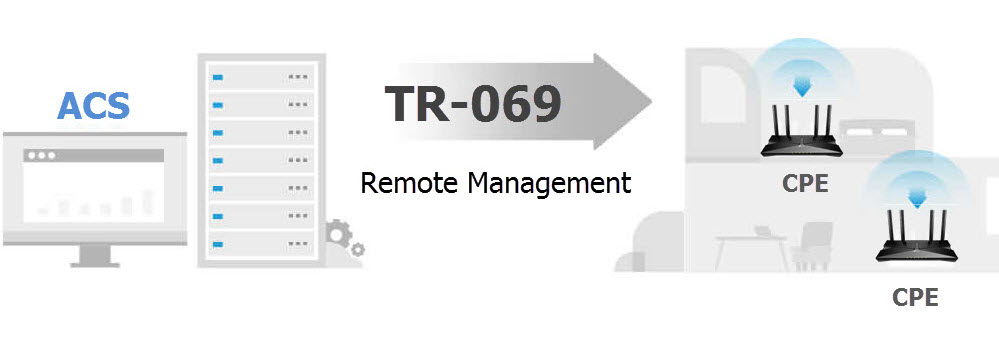

Support TR-069 Remote Management

ด้วยระบบ ACS หรือ Auto Configuration Service ทำให้ผู้ให้บริการ Internet สามารถ Remote จัดการ ปรับเปลี่ยนค่า Config รวมถึงบำรุงรักษา และ Monitor อุปกรณ์ CPE ปลายทางทั้งแบบกลุ่ม หรือแบบเดี่ยวได้อย่างสะดวก

Supports Aginet Config

 Enable ISPs to customize default configurations according to their requirements, it solves the ISP’s problem when end users reset the device.

Step 1
Prepare a computer and a switch

Step 2
Download and install Aginet Config software

Step 3
Generate configuration files with ISP customized settings

Step 4
Import configuration files and the device will be automatically upgraded in batches
